AntiGear-G gas-insulated metal-enclosed switchgear is an integrated assembly of SF6/N2/Air pressurized tanks, Breaker and disconnect switches that are coordinated electrically and mechanically for medium-voltage circuit protection.
IEEE/ANSI 37.20.9 UL listed

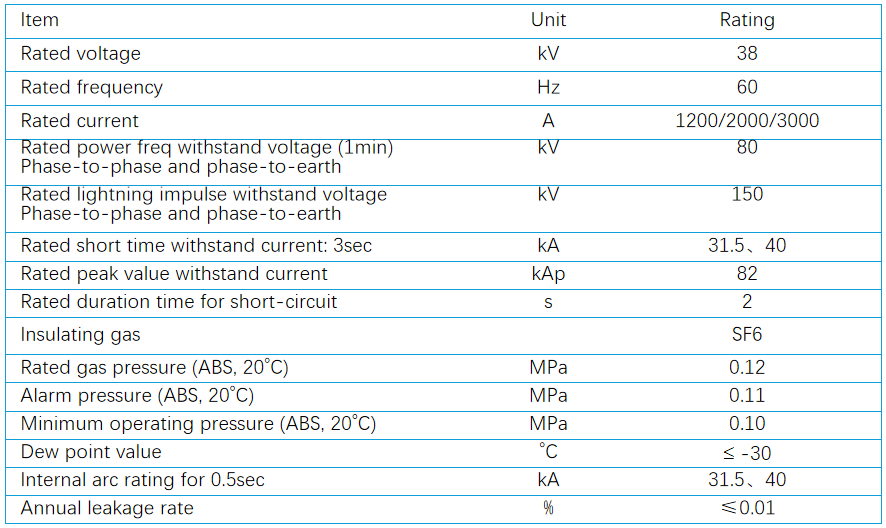

Up to 38kV, 3000 A, 40 kA, and 170 kV BIL
SF6/N2 Gas insulated, Vacuum circuit breaker metal- enclosed switchgear
Front accessible installation without gas handling
Camera system for visible disconnect of isolation and grounding switch
Intelligent Gas Density Information System (IDIS) for gas monitoring
Reduced maintenance due to sealed-for-life circuit breakers and bus bar compartments
